Better Than Pie Chart: Excel Bar Chart Guide

Pie charts look simple, but once you add more than three slices, they quickly become hard to read. Although they’re fast to create, they often hide insights instead of highlighting them. Instead of sending a cluttered pie chart to your boss or client, you can build a clean, professional bar chart that shows the same information  and more  in a clearer way.

In this step-by-step guide, you’ll learn how to:

• Replace a messy pie chart with a readable bar chart
• Show both value and percentage
• Automatically sort the chart dynamically
• Add a dynamic total to the title

By the end, your chart won’t just look better  it will behave better.

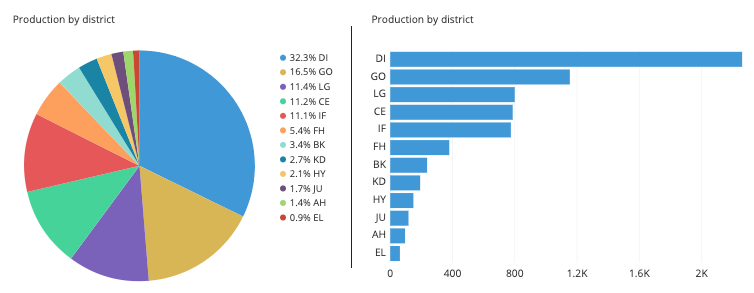

Why Pie Charts Often Fail



Pie charts work fine when you have two or three categories. However, once you introduce five, six, or more slices, readability drops dramatically.

Here’s why:

• Human eyes struggle to compare angles
• Small slices become unreadable
• Legends force viewers to look back and forth
• Sorting isn’t intuitive

Although many people choose pie charts because they’re quick to create (Insert → Pie → Done), speed should never come at the expense of clarity.

So instead, let’s build something better.

Step 1: Create a Linked Dataset for Flexibility

Suppose you have Profit (in millions) by Region in Excel.

Instead of building your chart directly from the original dataset, copy the range:

• Press Ctrl + C
• Right-click elsewhere → Paste Link

This creates a referenced version of your data.

Why does this matter?

Because later, we’ll apply a dynamic SORT() function  and we don’t want to modify the original dataset.

This small structural decision makes the chart scalable and professional.

Step 2: Insert a Clustered Bar Chart

Now:

1. Select the linked dataset
2. Go to Insert → Clustered Bar Chart

Immediately, you’ll notice the improvement: bar charts are easier to scan vertically.

Next, clean it up:

• Reduce Gap Width to 40% (thicker bars look stronger)
• Delete gridlines
• Remove unnecessary axes
• Apply a dark fill color
• Add Data Labels

Already, the chart is more readable than the pie chart version.

Step 3: Add Currency Formatting

To improve professionalism:

• Format values as Currency
• Use one decimal place
• Position labels Inside Base
• Adjust font color for contrast

At this stage, you have clean value labels.

However, pie charts often include percentages — and we don’t want to lose that context.

Step 4: Add Percentage Labels (Advanced Trick)

First, calculate percentages:

= Profit / Total

Format as Percentage.

Now comes the clever part.

Instead of replacing value labels, you:

1. Right-click chart → Select Data
2. Add a new series (use the same Profit values)
3. Add Data Labels
4. Choose Value from Cells
5. Select the Percentage column
6. Uncheck Value
7. Set label position to Outside End
8. Set Series Overlap to 100%
9. Remove Fill and Border from the second series

What did we just do?

You duplicated the series but used it only to display percentage labels.

As a result, the chart now shows:

• Profit values (inside bars)
• Percentage contribution (outside bars)

In other words, it contains all the information of a pie chart  but in a far clearer layout.

Step 5: Make the Chart Auto-Sort Dynamically

Static sorting is a problem.

Sure, you could right-click → Sort Smallest to Largest. But every time data changes, you would need to repeat that step.

Instead, use the SORT() function in your linked dataset:

=SORT(range, 2, 1)

This sorts by the second column (Profit) in ascending order.

Now, whenever values change:

• The dataset updates
• The chart reorders automatically
• No manual sorting required

This is what separates beginner charts from professional ones.

Step 6: Add a Dynamic Total to the Chart Title

One argument pie-chart fans often make is:

“The circle shows the full picture.”

You can solve that easily.

First, calculate the total using:

=SUM(range)

Then:

1. Insert a Text Box
2. Click the Formula Bar
3. Type = and reference the total cell
4. Press Enter

Now the chart title dynamically updates.

For extra clarity, format the total with:

• Custom number format
• Add " M" after the value

Whenever data changes, both the total and chart update automatically.

Final Comparison: Pie Chart vs Professional Bar Chart

Ask yourself:

Which one would you confidently present to leadership?

The cluttered pie chart?
Or the sorted, dynamic, clearly labeled bar chart?

The difference isn’t just aesthetic  it’s analytical clarity.

When to Avoid Pie Charts

Avoid pie charts when:

• You have more than three categories
• Values are close in size
• You need sorting
• Precision matters
• You’re presenting to executives

Instead, use structured bar charts with smart formatting.

Take Your Data Visualization to the Next Level

If you want to master professional chart design  including highlight strategies, advanced layouts, and executive-level reporting  explore advanced Power BI and data visualization training

Conclusion

Although pie charts are quick to create, they often sacrifice clarity. By contrast, a well-designed bar chart:

• Shows values and percentages
• Sorts automatically
• Updates dynamically
• Looks professional
• Communicates insight instantly

The next time someone asks for a pie chart, do them a favor  and send them something better.
