Welcome to the journey of converting a flat file into a robust data model using Power BI! If you’ve ever opened a pivot table or a Power BI file and faced a chaotic list of columns, you’re not alone. The challenge is real—how do you know which columns to use? This post is all about taking that flat file, whether it’s a CSV or Excel, and structuring it into a data model that not only enhances usability but also boosts reporting efficiency. Let’s dive in!
The Importance of Structuring Data
When you receive a flat file, it often comes packed with numerous columns, and without proper organization, it can be overwhelming. The lack of structure makes it difficult for users to navigate and find the necessary data efficiently. That’s why structuring your data is crucial. Not only does it help you build your reports faster, but it also makes it easier for others to use the model you’ve created.
Getting Started with Power BI
To kick off the transformation process, you need to load your flat file into Power BI. Start by reaching out to your IT department and requesting the necessary sales data. Once you receive the CSV file, follow these steps:
- Open Power BI Desktop.
- Select Get Data and choose CSV.
- Browse to the location of the CSV file and click Open.
Now, instead of clicking Load, which might seem like the obvious choice, click on Edit. This will open the Query Editor, where you can manipulate your data before finalizing it.
Cleaning Up the Data
Once the Query Editor is up, the first step is to clean up the columns you don’t need. This is crucial because a cluttered dataset can lead to confusion and inefficiency in reporting.
- Look for columns that are unnecessary and remove them.
- To do this, go to Choose Columns and uncheck the boxes next to the columns you want to eliminate.
- If the columns are arranged in order, you can select the first column, hold down the Shift key, and select the last column to remove them all at once.
Understanding Your Data Model
Next, you need to think about how your data model will be structured. Consider the following:
- Identify the additive values that will function as your fact table.
- For example, in your sales data, look for keys like Product Key and Sales Territory Key.

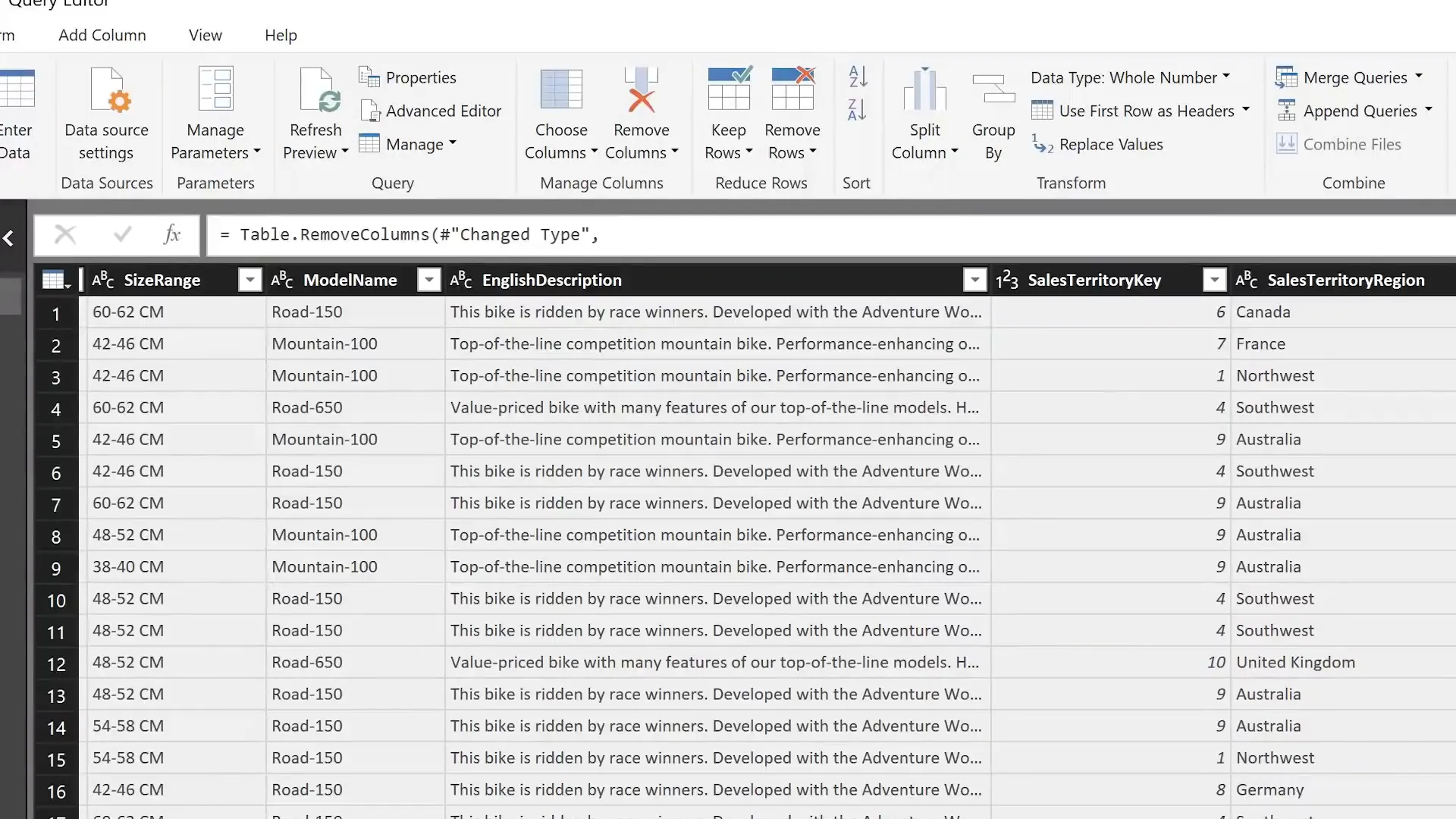

Sometimes, it helps to sketch out your model on paper or use a digital tool to visualize it. Once you have a clear idea, you can duplicate your query as many times as necessary to create the necessary tables.
Creating Your Fact and Dimension Tables
Your next step involves creating the different tables that will make up your data model. This typically includes:
-
- Fact Table
- Dimension Tables: These tables contain descriptive data, such as product details and sales territory information.
To create these tables:
- Duplicate the original query for your fact table and rename it accordingly, say Sales Orders.
- Remove any unnecessary columns from this table, keeping only the keys and the additive values.
Repeat this process for the dimension tables, focusing on the relevant columns for each dimension. For instance, create a Product table and a Sales Territory table, ensuring each contains only the necessary columns.

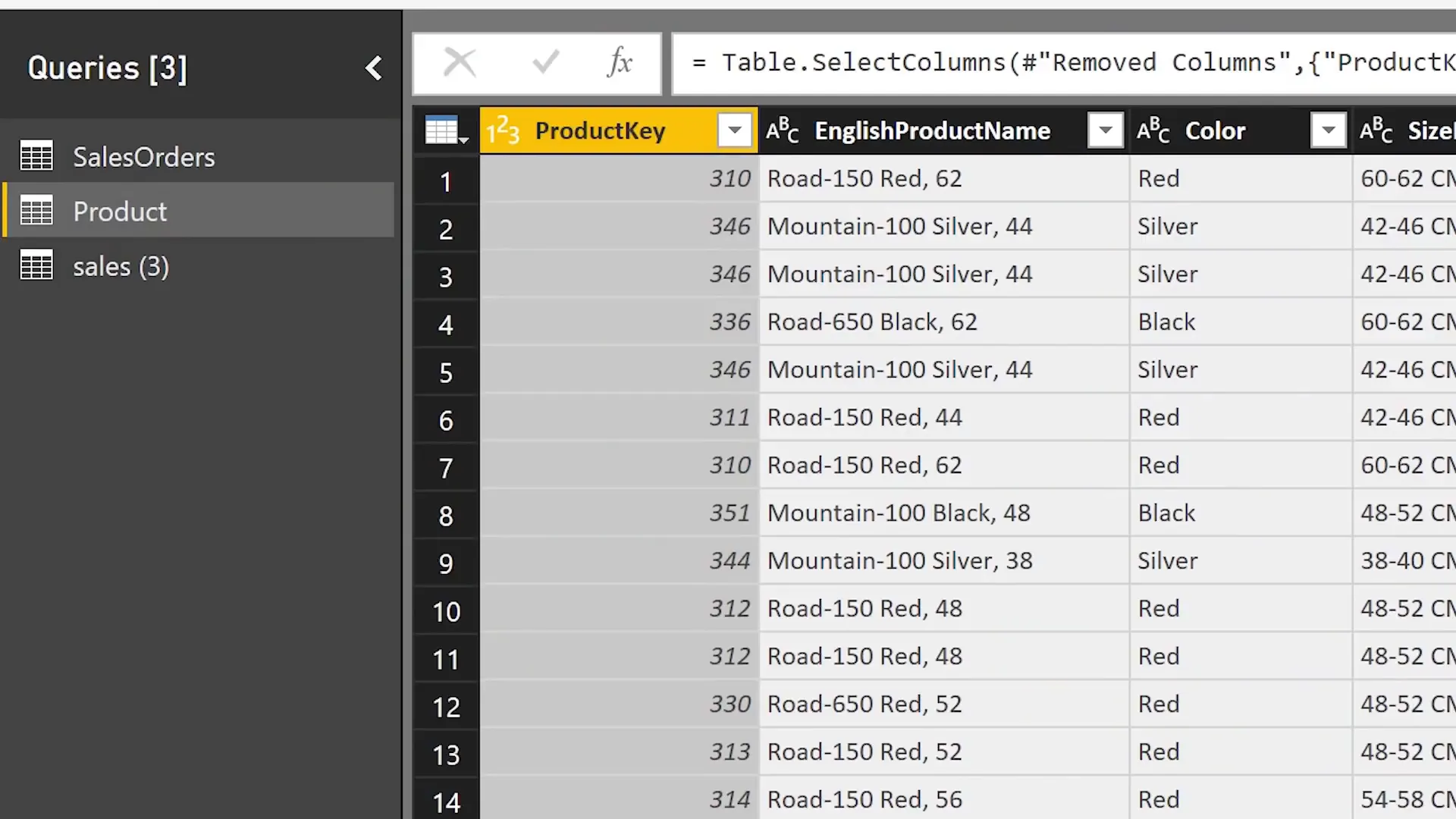

Removing Duplicates
Once you have your tables set up, it’s essential to ensure that the dimension tables contain unique values. This is where removing duplicates becomes important:
- Select all the columns in your dimension table.
- Right-click and choose Remove Duplicates.
Finalizing Your Data Model
After cleaning up your data and ensuring uniqueness, it’s time to finalize the model. Click on Close & Apply in the Query Editor. This action will load your data into Power BI, creating the data model you need.
Building Relationships Between Tables
Once the data is loaded, you can establish relationships between your fact and dimension tables. This is a critical step because it enables you to perform more complex analyses and reporting:
- Go to the Model view in Power BI.
- Drag and drop the relevant fields from your fact table to your dimension tables to create relationships.

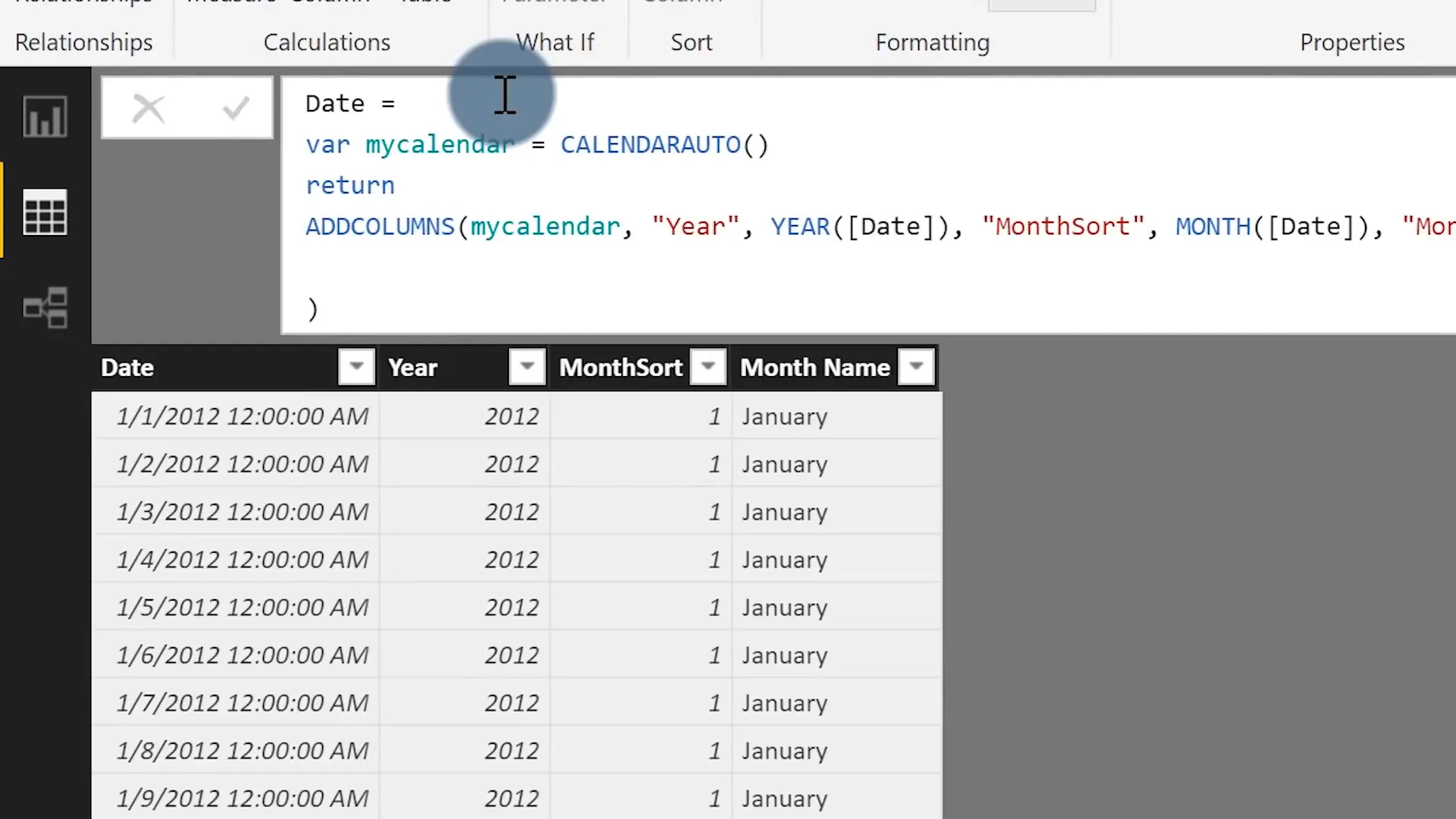

Creating a Date Table
In many cases, it’s also beneficial to create a date table for your model. This can be done easily using DAX:
- Navigate to the Modeling tab.
- Click on New Table and enter the following DAX formula:
Date Table = CALENDARAUTO()This function automatically creates a date range based on the data in your model.
Utilizing Your Data Model for Reporting
Now that your data model is structured and relationships are established, you can start building your reports. The organized structure of your data model allows for quicker navigation and more efficient reporting processes. You can publish your model to Power BI service and easily access it for visualization.
Remember, separating your data modeling from visualization can enhance performance and maintainability of your reports. If you need more insights on this topic, feel free to check out my other videos on data silos and best practices for Power BI.
Conclusion
Transforming a flat file into a data model in Power BI is not just about loading data; it’s about organizing and structuring it for better usability. By following the steps outlined in this guide, you can create a clean, efficient data model that makes reporting a breeze. If you’re interested in elevating your Power BI skills, consider enrolling in expert-led Power BI training to deepen your understanding and capabilities.
