When it comes to data modeling in Power BI, one concept stands out for its effectiveness: the Star Schema. Understanding what a Star Schema is and why it is essential for Power BI can significantly enhance your data analysis capabilities. In this blog, we will dive deep into the structure of a Star Schema, its components, and the four compelling reasons why you should adopt it in your Power BI projects.
What is a Star Schema?
A Star Schema is a specialized data model primarily used in designing relational data warehouses. This model is often associated with the Kimball methodology, which provides a clear framework for organizing data into fact and dimension tables. In simple terms, a Star Schema consists of:
- Fact Tables: These tables store quantitative data for analysis. They typically contain metrics and measurements, such as sales amounts or transaction counts.
- Dimension Tables: These tables provide context to the data in the fact tables. They include descriptive attributes related to the facts, like product details, customer information, or time dimensions.

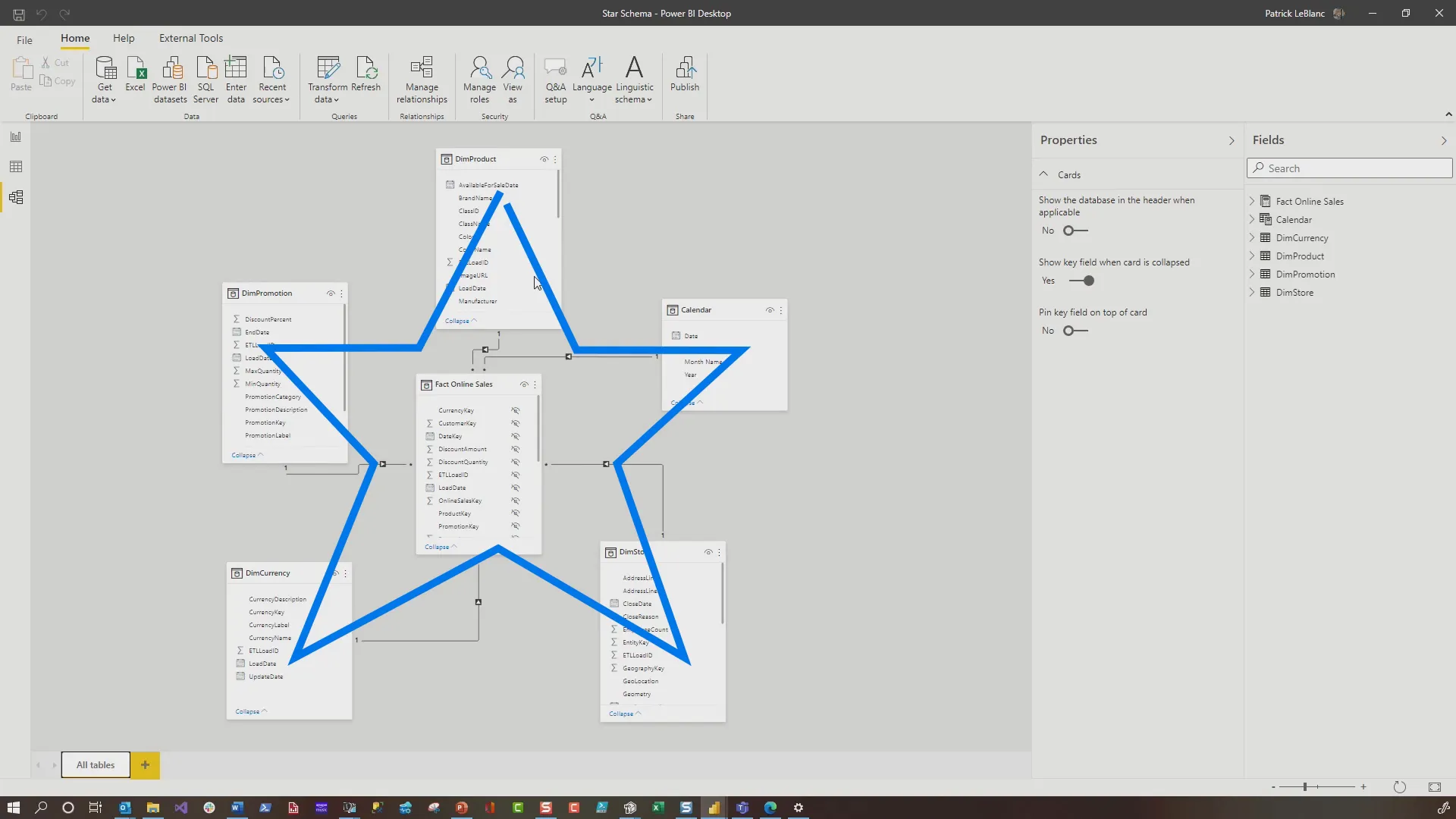

In a Star Schema, the fact table sits at the center, with dimension tables radiating out like points on a star. Each dimension is linked to the fact table through a surrogate key.
Components of a Star Schema
To fully grasp the power of the Star Schema, let’s break down its components:

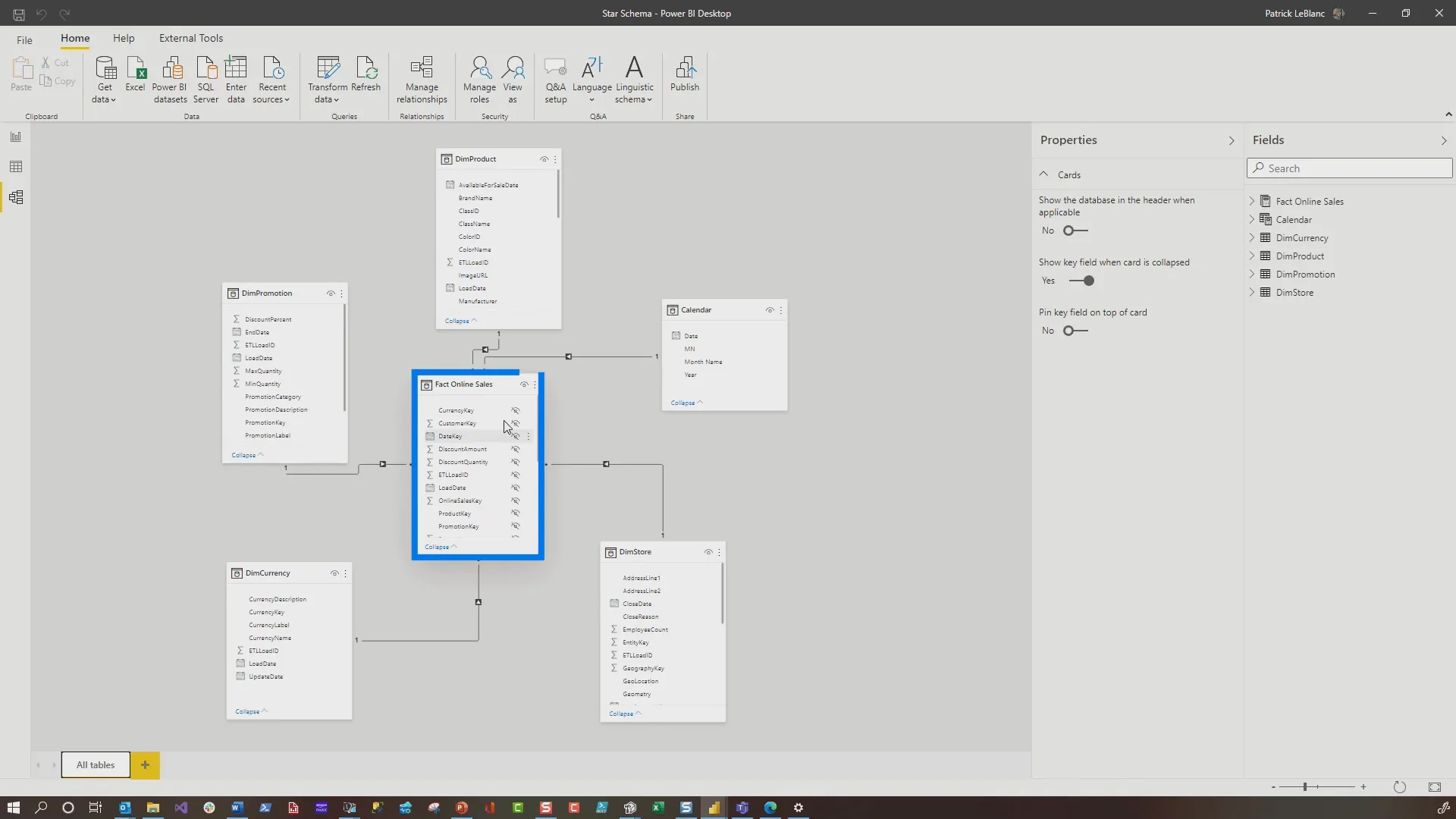

Fact Table
The fact table is the core of the Star Schema, containing the metrics you want to analyze. Common characteristics include:
- It holds quantitative data that can be aggregated, such as sales totals or counts of transactions.
- Each row in the fact table represents a single event or transaction.
Dimension Table
Dimension tables enrich the fact data with context. They typically include:
- Attributes that describe the facts, such as product names, customer demographics, or time periods.
- Surrogate keys that link back to the fact table, providing a way to filter and group data effectively.
Four Reasons to Use a Star Schema in Power BI
Now that we understand the structure of a Star Schema, let’s explore the four primary reasons it is beneficial for Power BI users:
1. Usability

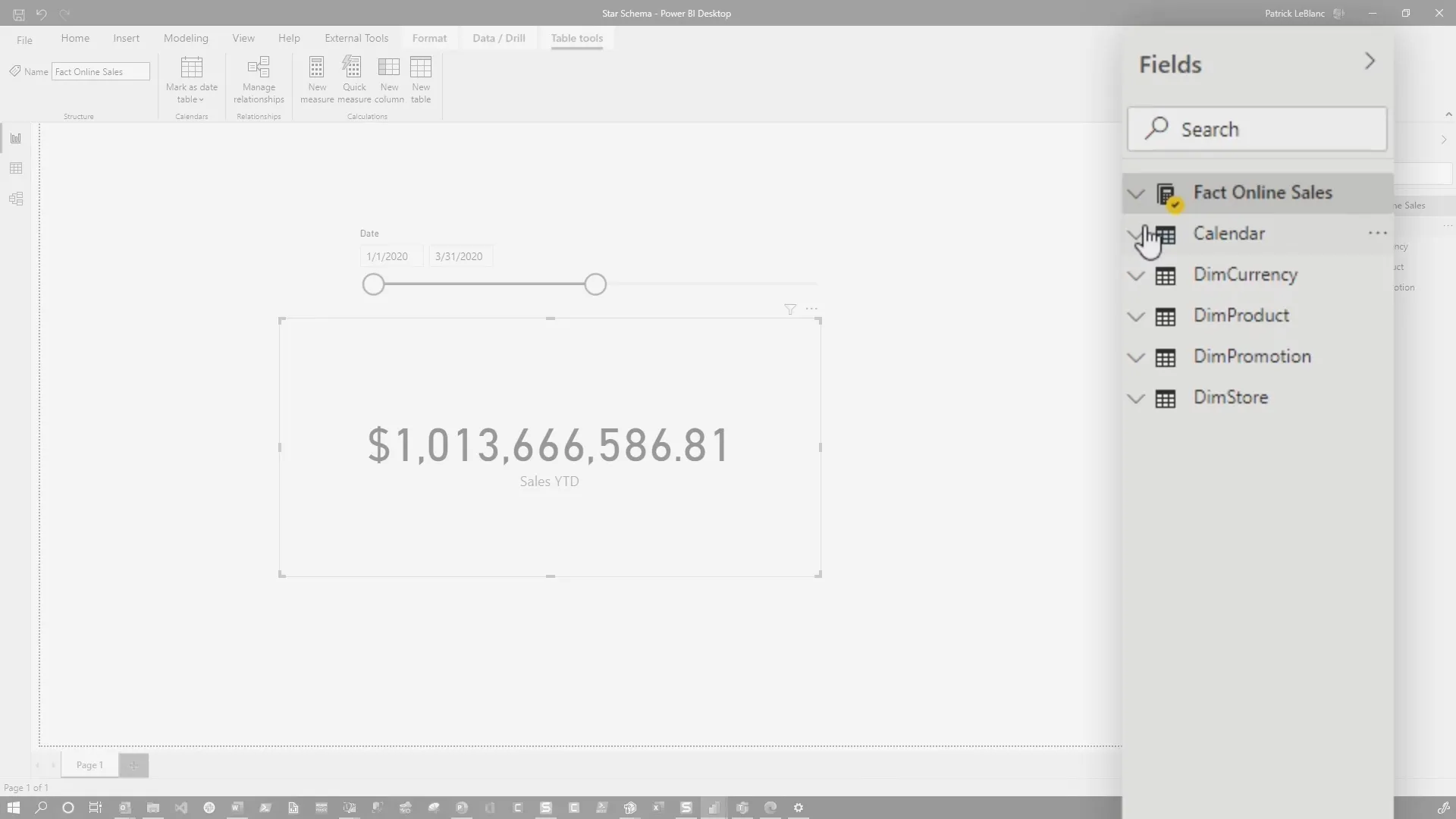

One of the major advantages of a Star Schema is its usability. When you have a flat file with all your data in one place, finding the specific fields you need can be a daunting task. In contrast, a well-structured Star Schema makes data exploration straightforward. Fields are categorized into dimension tables, making it easy to locate information quickly.
2. Simpler DAX

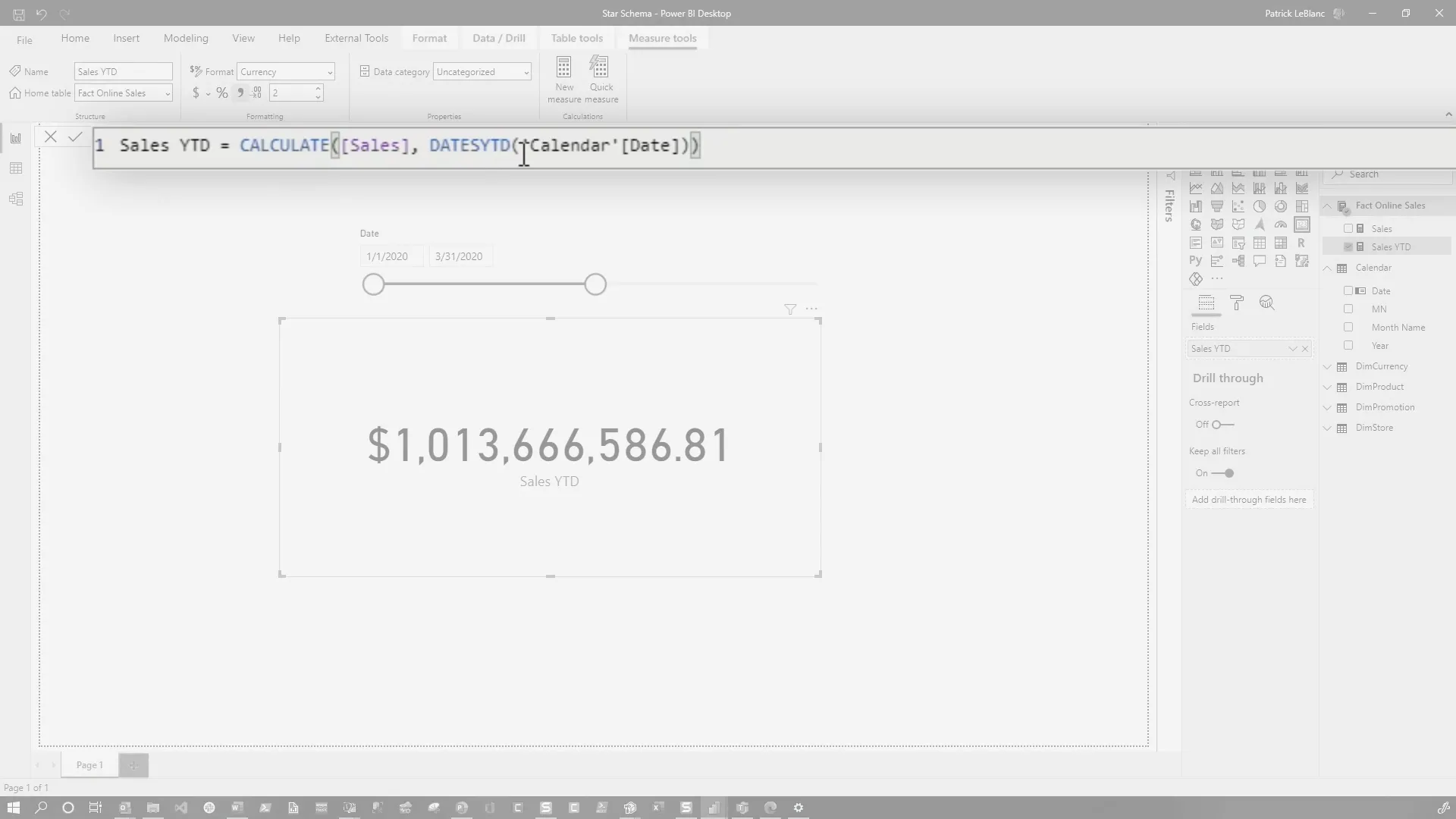

Another essential benefit of using a Star Schema is that it simplifies DAX (Data Analysis Expressions) formulas. When working with a flat file, DAX expressions can become complex and lengthy due to the need for manual filtering and aggregating. With a Star Schema, DAX becomes more intuitive and readable, allowing you to leverage built-in functions without extra complexity.
3. Performance

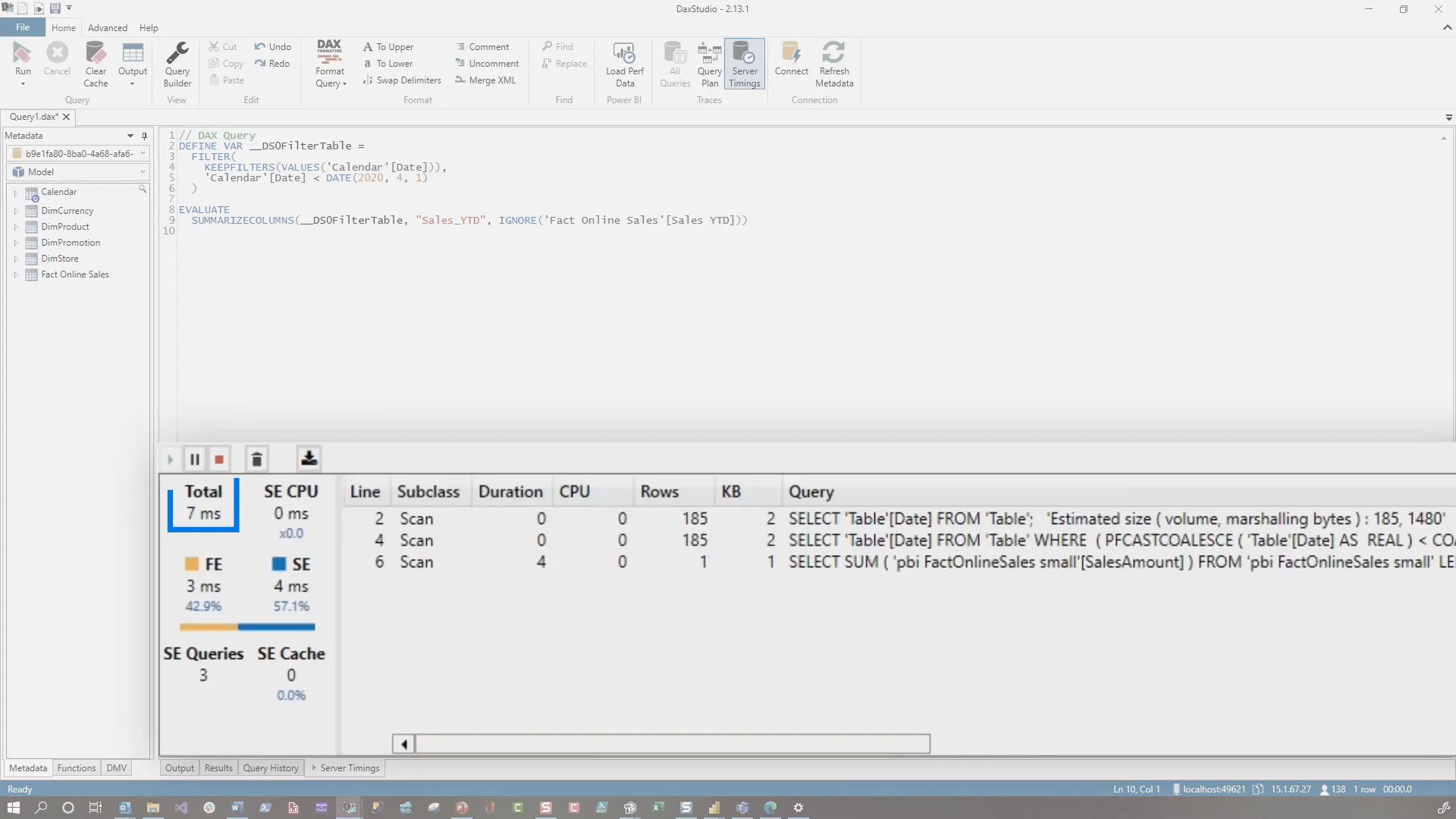

Star Schemas excel in performance, especially when handling large datasets. While smaller datasets may not show a significant difference, as your data grows—potentially into millions or billions of rows—a Star Schema maintains efficient performance. For instance, tests have shown that queries against a Star Schema can be several times faster than those against flat tables.
4. Faster Refreshes
Lastly, using a Star Schema leads to quicker data refreshes in Power BI. When loading data from a source, the time taken for refresh can vary dramatically between a flat table and a Star Schema. In tests, a Star Schema processed millions of rows in a fraction of the time compared to a flat table, demonstrating its efficiency in maintaining performance during data updates.
Conclusion
In summary, adopting a Star Schema in your Power BI projects can significantly improve usability, simplify DAX coding, enhance performance, and speed up data refreshes. If you are currently using flat tables, consider transitioning to a Star Schema model. For further reading on this topic, check out the official guidance on Star Schema design and enhance your data modeling skills.
Are you currently utilizing Star Schemas in your Power BI projects? What are your thoughts? Share your experiences in the comments below!
For those looking to boost their Power BI skills, consider exploring our expert-led Power BI training courses.
Thanks for joining me in this exploration of Star Schema in Power BI. Until next time, happy analyzing!
